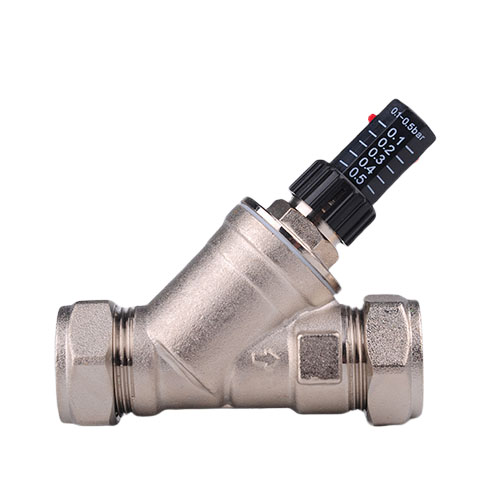

Automatic bypass valve is suitable for all heating system up to 10 bar static pressure where a boiler bypass is required or radiator thermostats are fitted. It provide a simple method of ensuring adequate flow through boilers which require a bypass as well as reducing system noise.
·Maximum working pressure: 10 bar
·Capacity: 1-5 m³/hr
·Range: 0.1 to 0.5 bar bar differential pressure
·Maximum working temperature： 100℃
