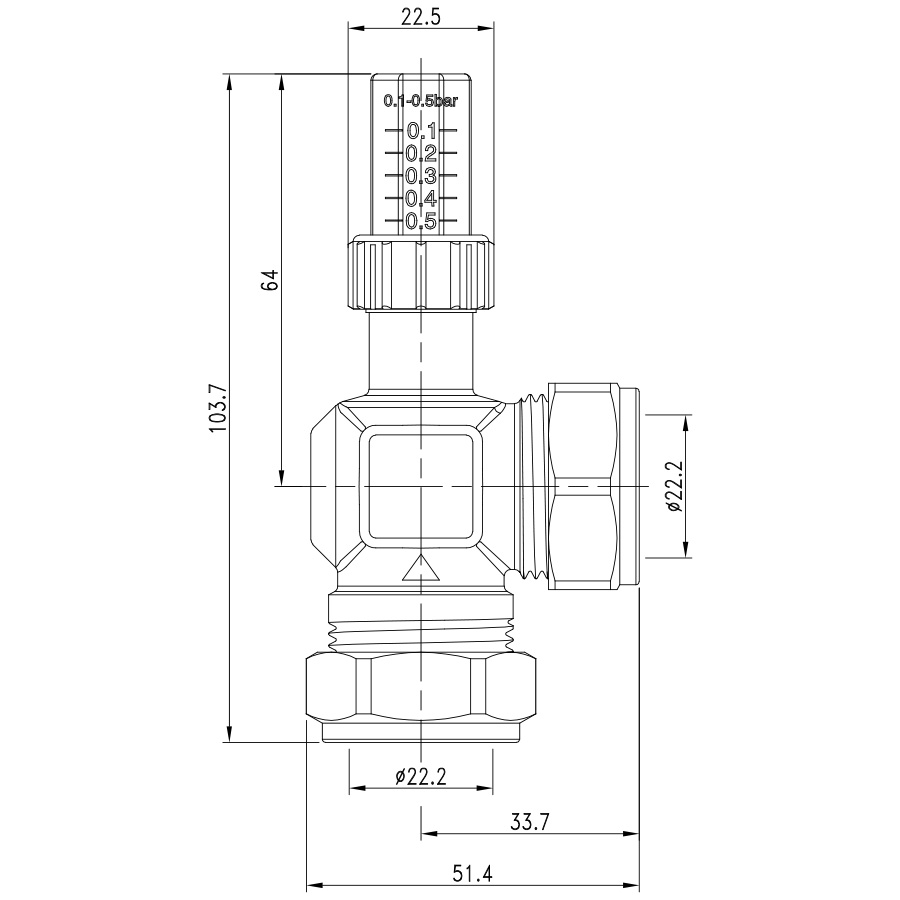

22mm Angled Automatic Bypass Valve


Automatic bypass valve is suitable for all heating system up to 10 bar static pressure where a boiler bypass is required or radiator thermostats are fitted. It provide a simple method of ensuring adequate flow through boilers which require a bypass as well as reducing system noise.


Technical Specification

·Maximum working pressure:                      10 bar

·Capacity:                                                         1-5 m³/hr

·Range:                                                             0.1 to 0.5 bar bar differential pressure

·Maximum working temperature:   100

·Medium:                Water
